Super Resolution(SR) |
640*480 |
Thermal Sensitivity(NETD) |
40mk(0.04°C) |

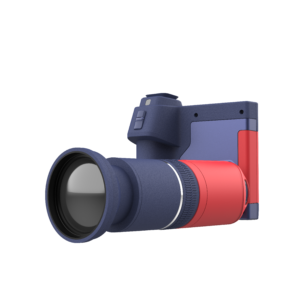

Lens /Field of View |
49°x 36.8° |
|
|
Focus Mode |
0.5 meters focus free |
AI programmable key |
Support |
Wi-Fi & Bluetooth |
Yes, for data transfer & Headset. |
Build-in digital camera |
8 MP industrial camera |
Frame Rate |
30Hz |
Temperature Range |
-20 °C to 550°C |
Emissivity |
Support |
Measurement Tools |
Spot:6 |
|
Line:1 |
|
Rectangle/Circle:4 |

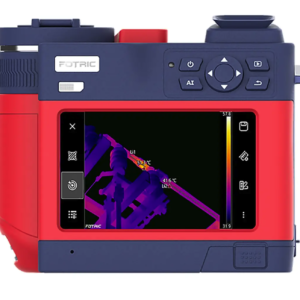

Display Screen |
3.5 inch Touch Screen |
Palettes |
8 |
|
Grey, Iron, Rainbow, Grey-red, Rain, GlowBow, Medical, Prism |
Storage Card |
TF card,64GB |
On screen Analysis |
Support |
QR-code scan, saved in Tags |
Support |
Remote Display |
Support |
(with AnalyzIR Software) |
|
Battery |
3.6V,5000mAh Li-battery |
Battery operation time |
≥4 hours |
Operation temperature |
-20°C to 50°C |
Storage temperature |
-40°C to 70°C, without battery |
Drop |
Designed for 2 meters drop test. (GB/T 2423.8/IEC 60068-2-32) |
Weight ( include battery) |
730g |
Enclosure rating |
IP54 |
Warranty |
2 years warranty on camera, 10 years for IR detector. |
